Diode turns browser-based circuit design into a live workspace. You build and test electronics without local installs. The simulator keeps the interface modern and the workflow direct.
The app simulates current flow, voltage states, and logic behavior in real time. It supports analog parts, digital gates, and interactive controls like switches and knobs. It also gives you virtual instruments for checking signals while you work.
Project Link
Project link:
https://withdiode.com
Diode fits the browser-first workflow that skillsmp-the-app-store-for-ai-agents and claude-hud-the-real-time-dashboard-for-claude-code both point toward. It removes the old simulator setup burden and keeps everything inside one tab. That matters when you want fast iteration.
How It Works

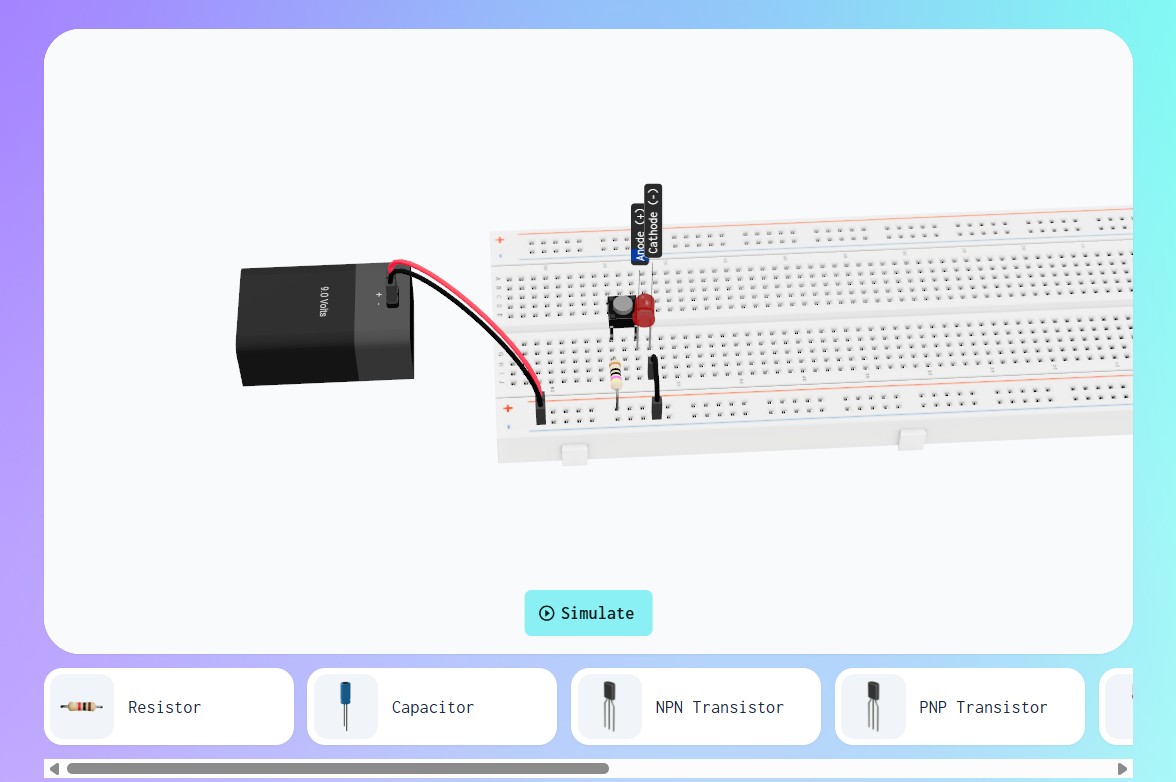

Diode runs in the browser and lets you place components on a canvas. It updates the circuit as you connect parts and change values. The tool also supports a virtual microcontroller workflow for code-driven hardware tests.
Setup stays light, because you only need a compatible browser and the app itself. The workflow matches the solo tinkerer and the team prototyping session. It also pairs well with deepwiki-the-fix-for-understanding-github-repos when you need to understand supporting code fast.
- Open the app in your browser.
- Drag components onto the canvas.
- Wire the parts and adjust values.
- Watch the simulation update live.
The Verdict
Diode removes friction from circuit prototyping. It gives you a fast way to test ideas before you touch hardware. The catch is the usual browser-tool tradeoff: convenience beats depth for some advanced workflows.
It works best for quick experiments, demos, and learning. It also helps when you want to share a circuit without shipping desktop software. The project deserves a look if you build electronics in short sessions.
